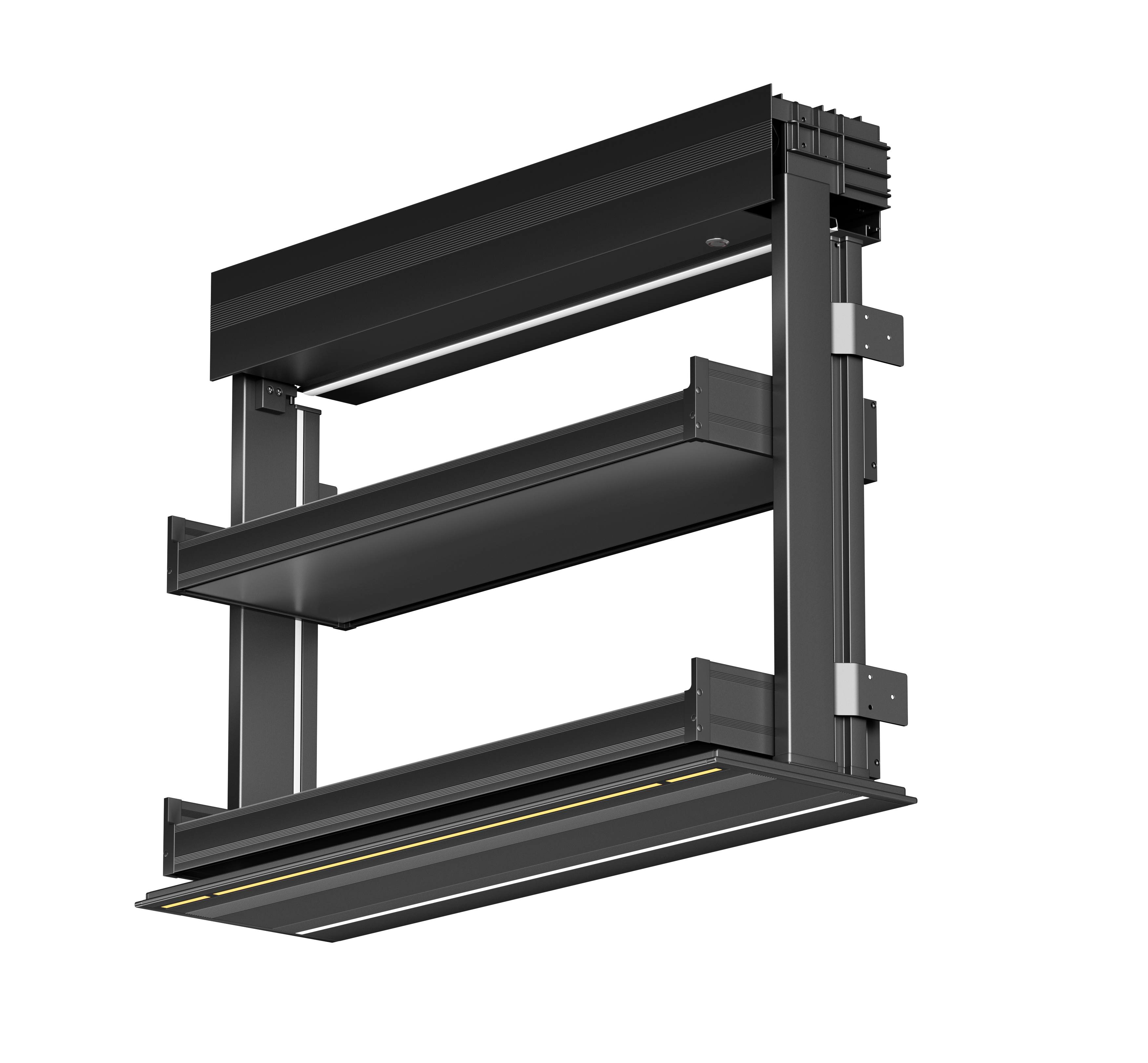

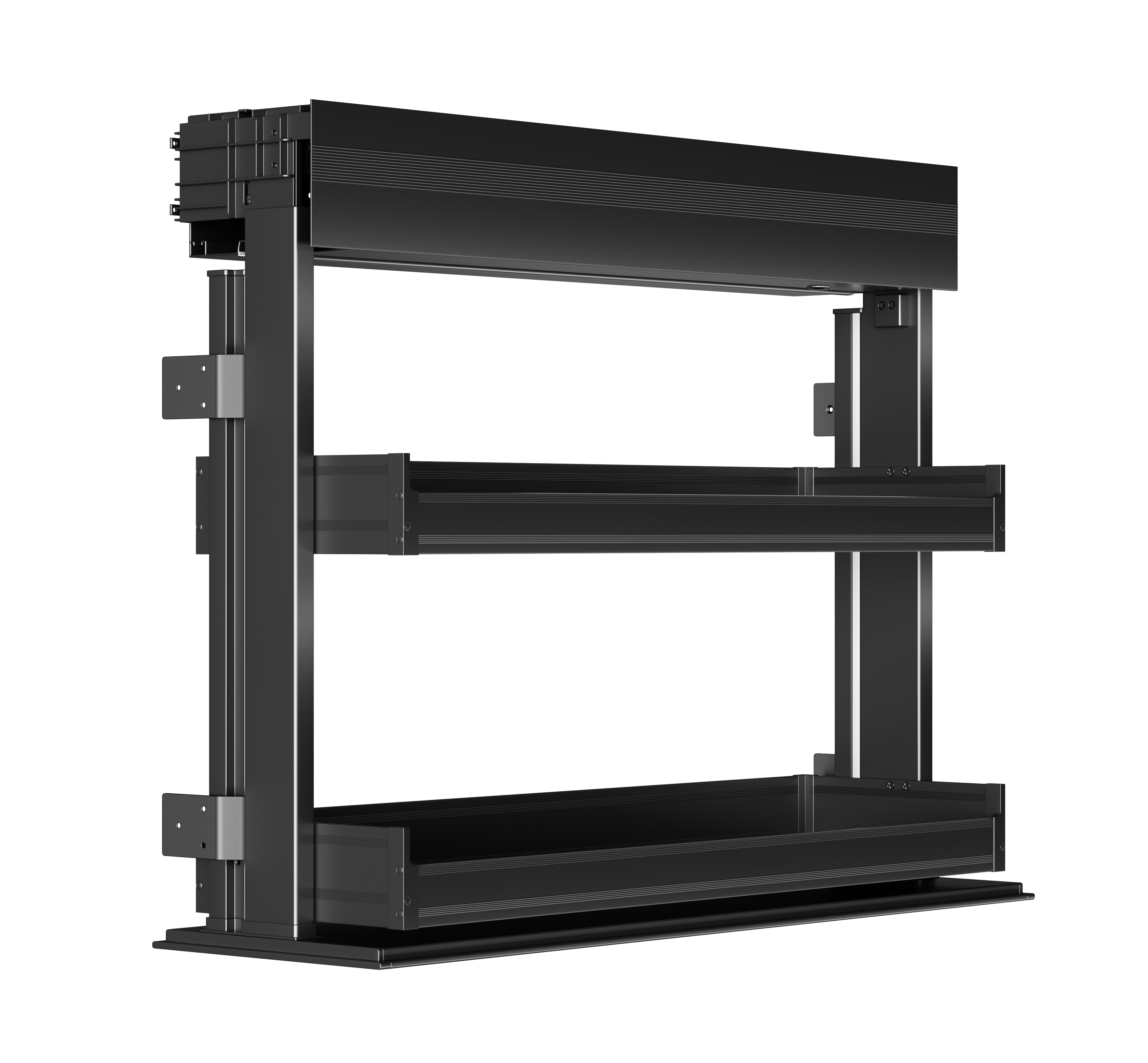

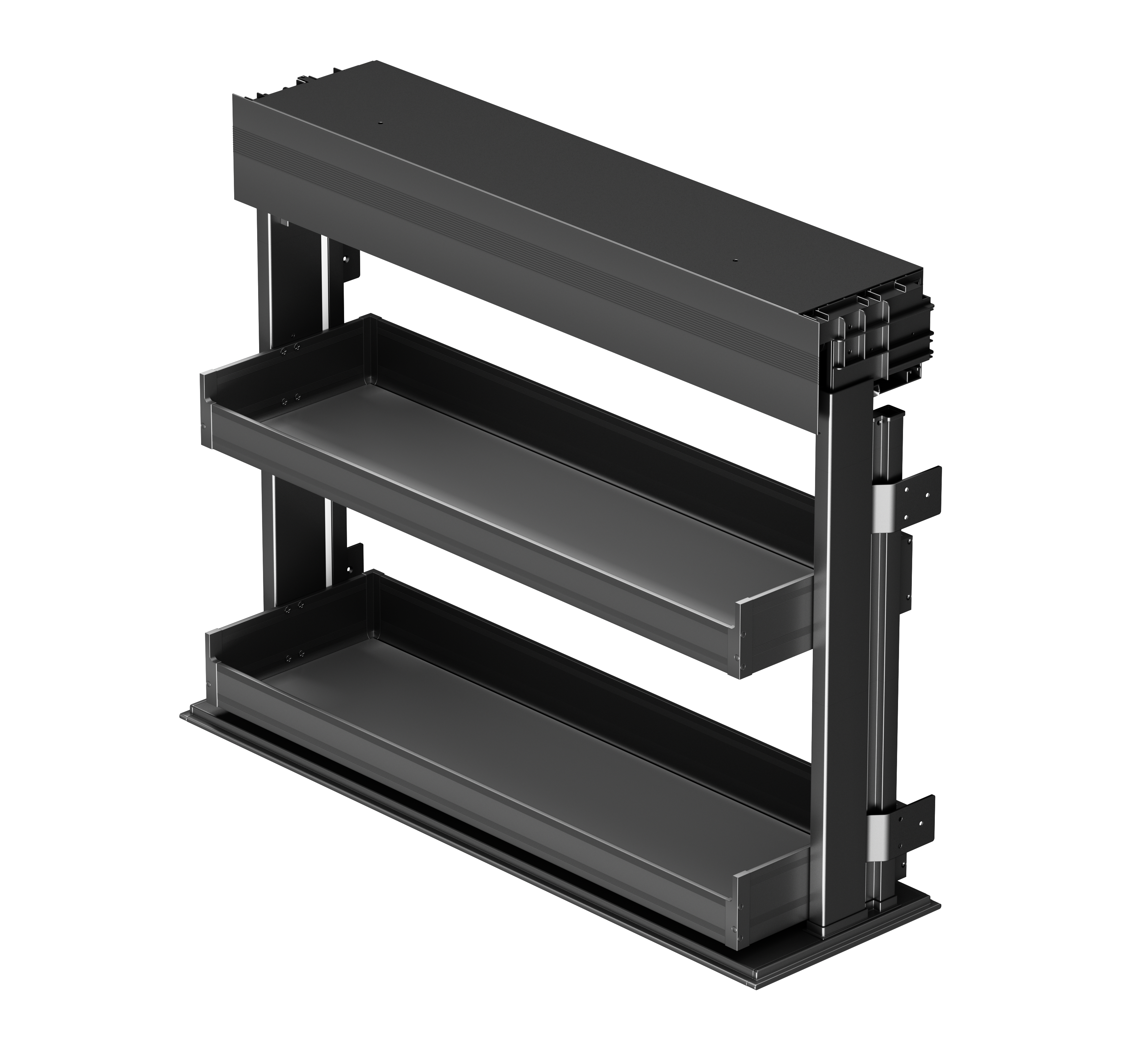

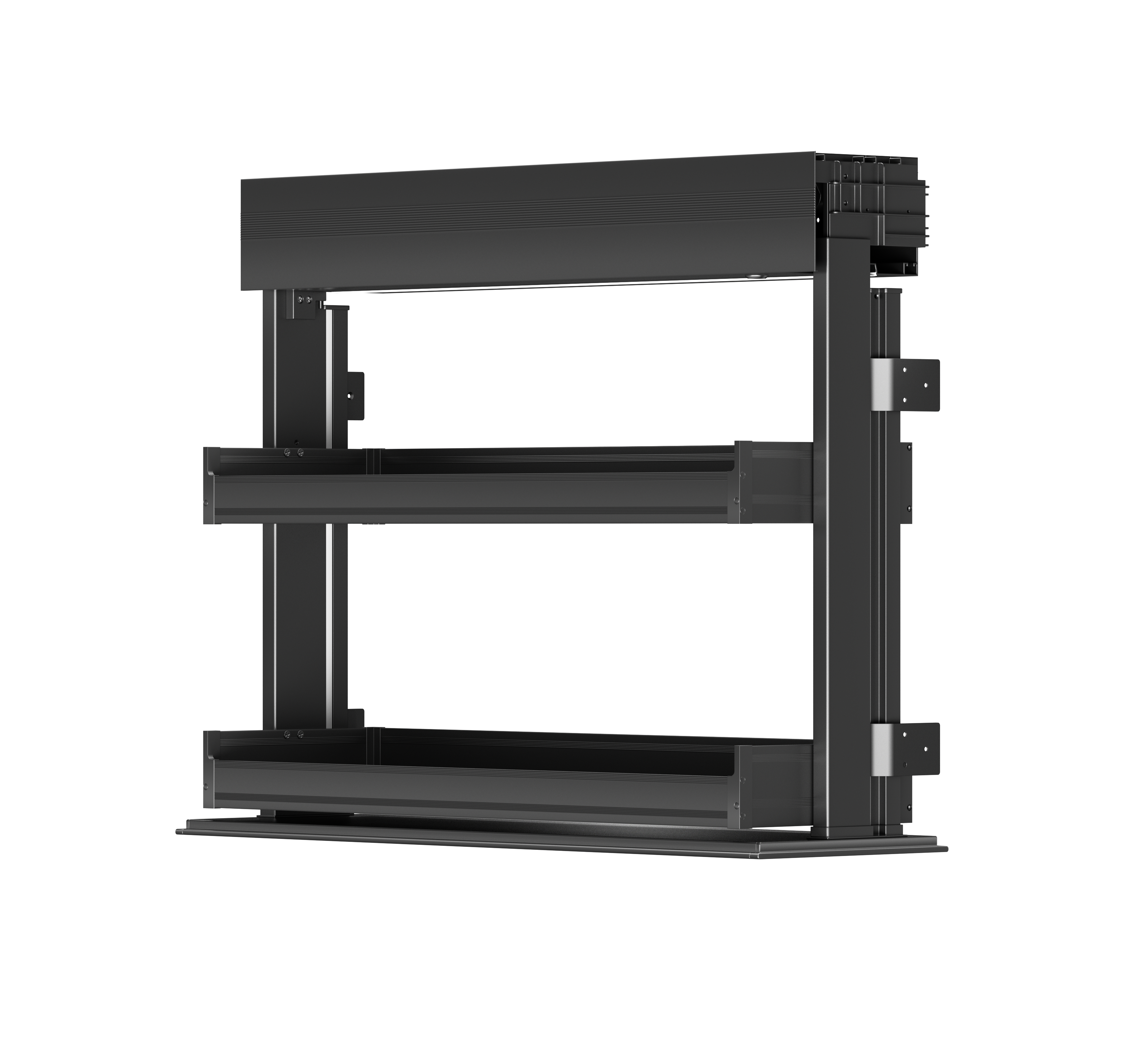

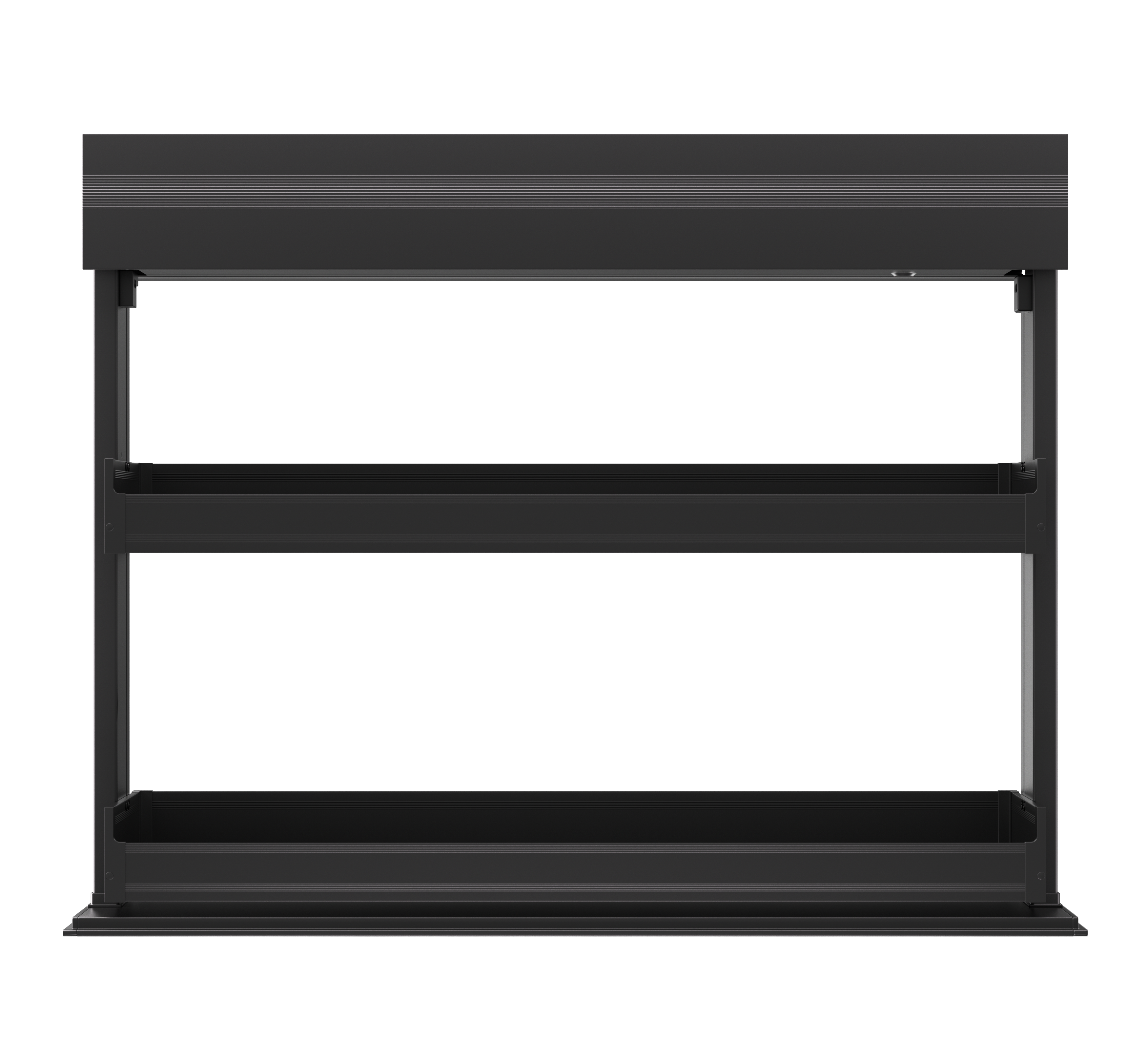

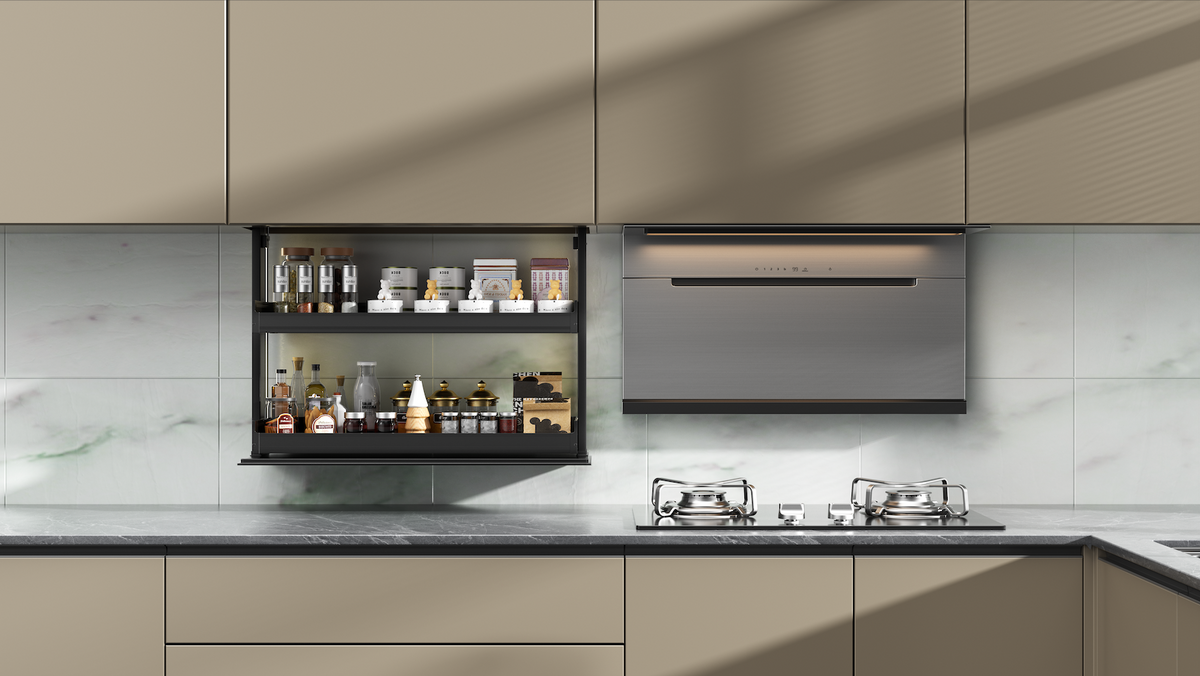

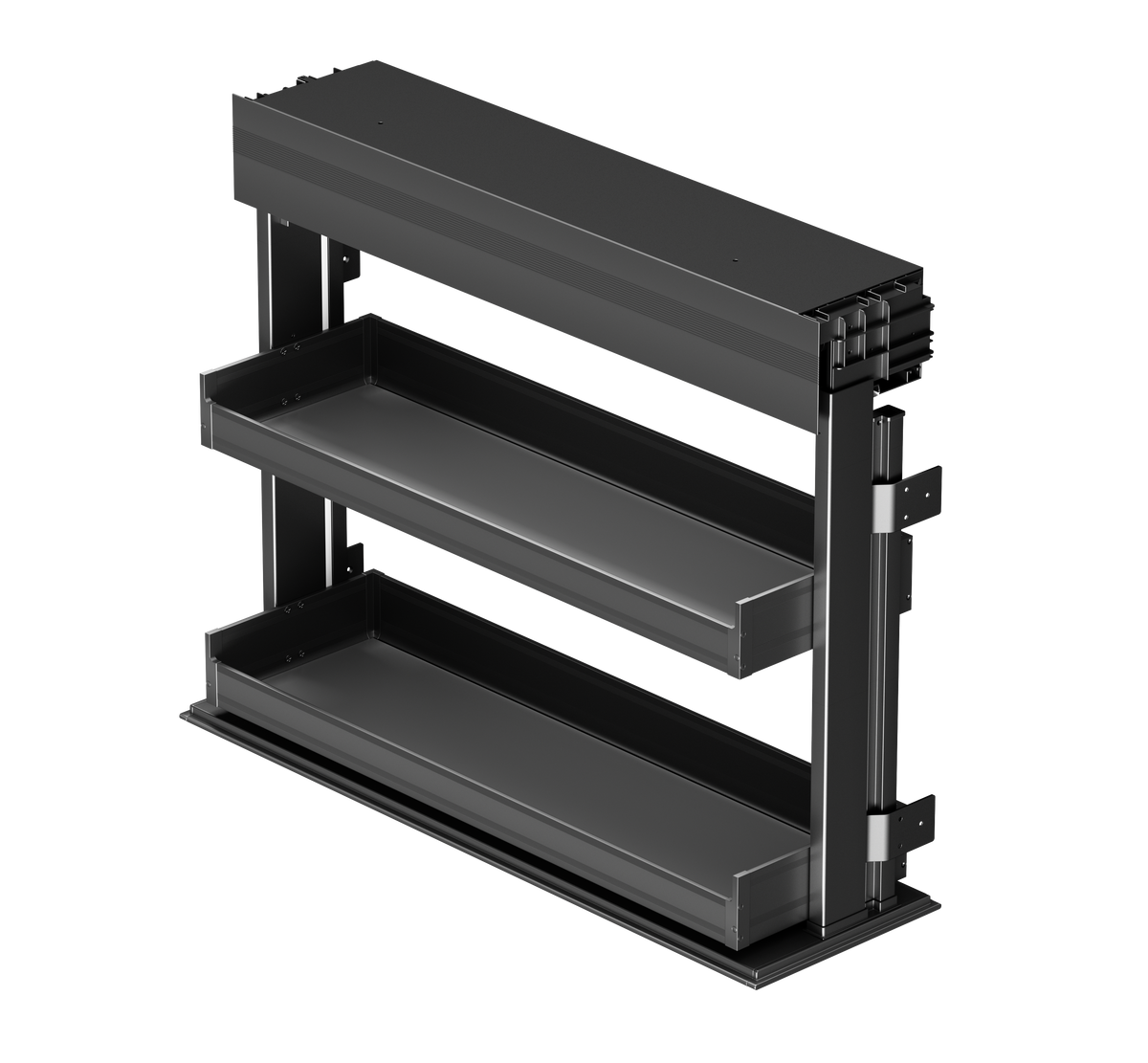

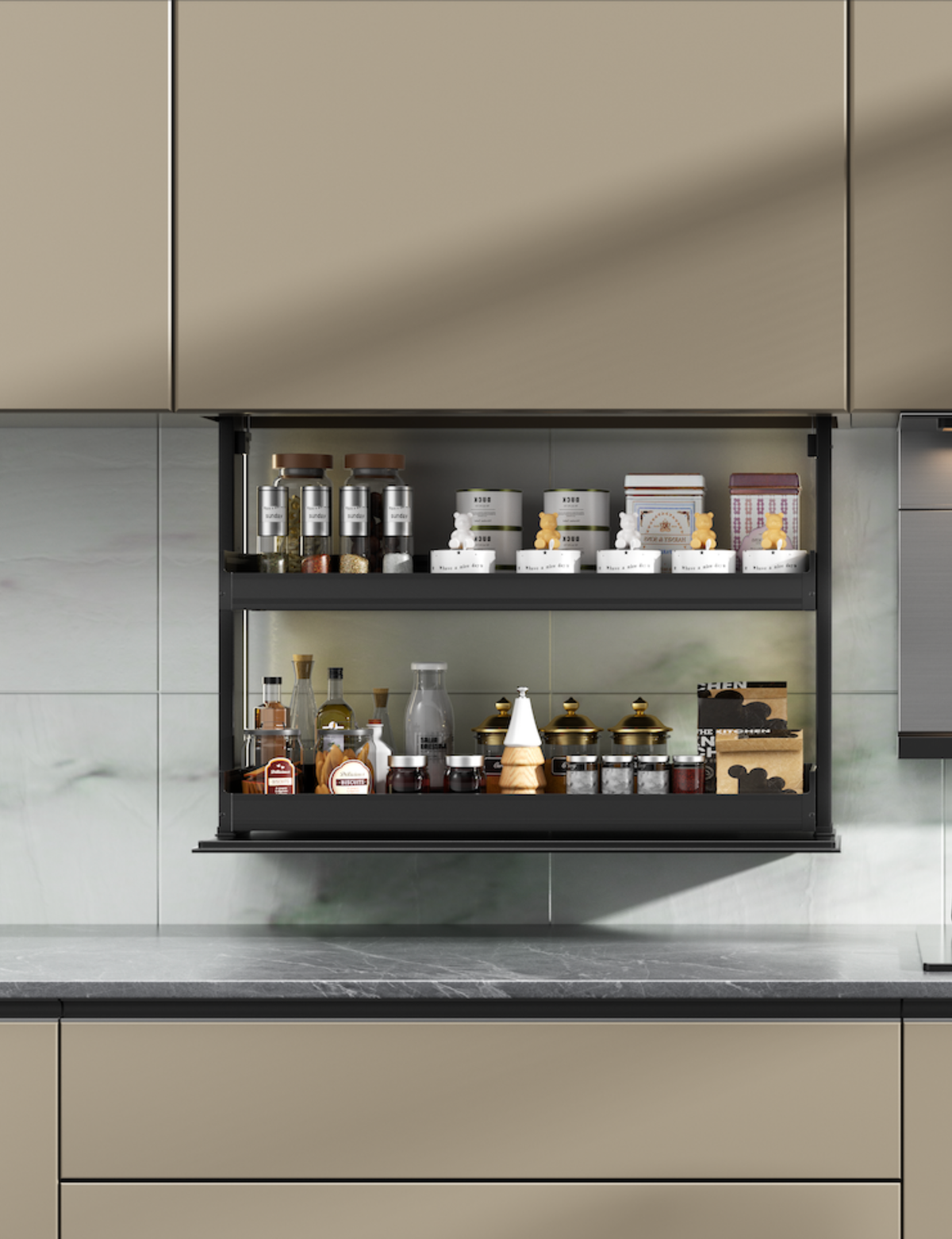

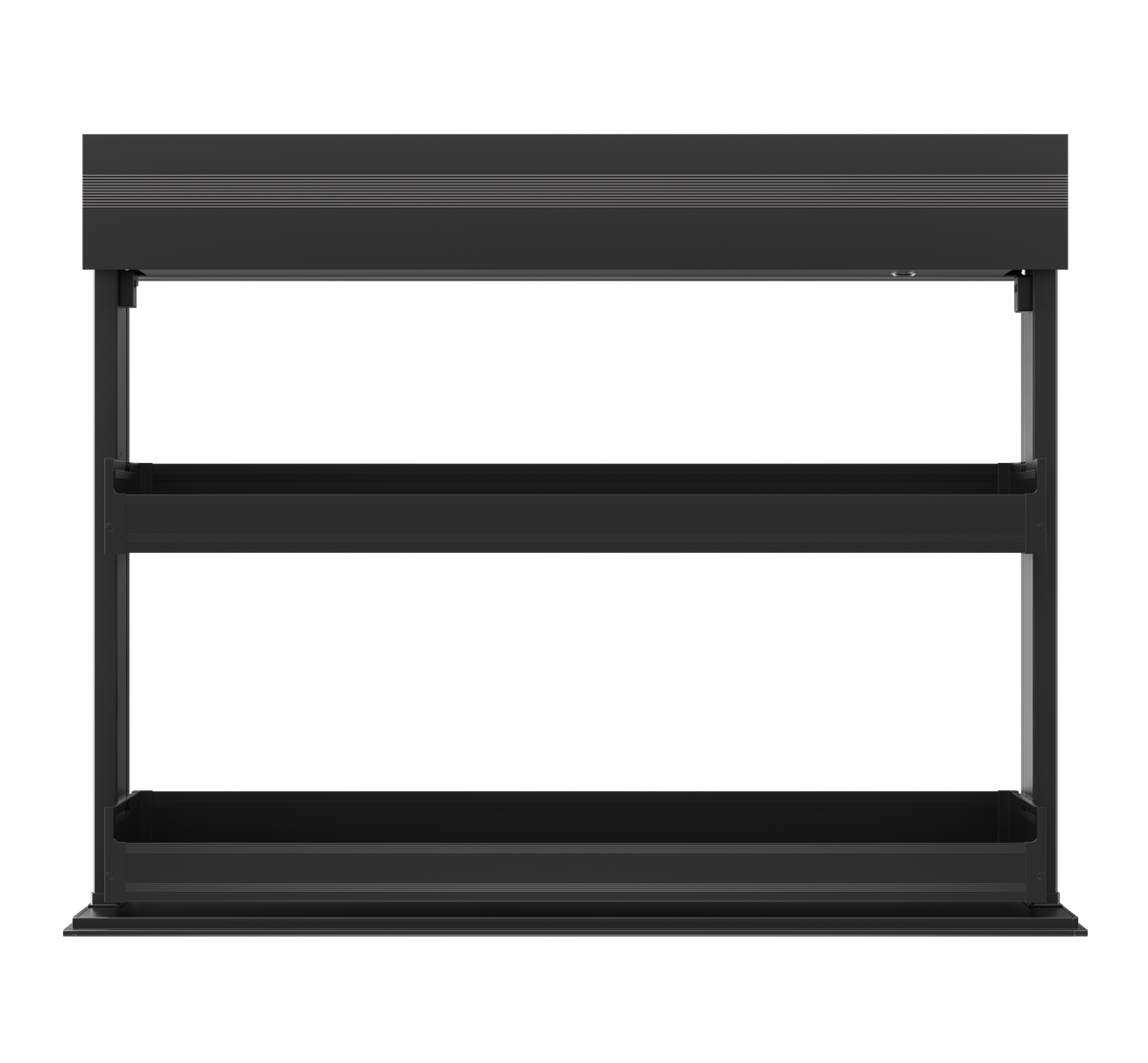

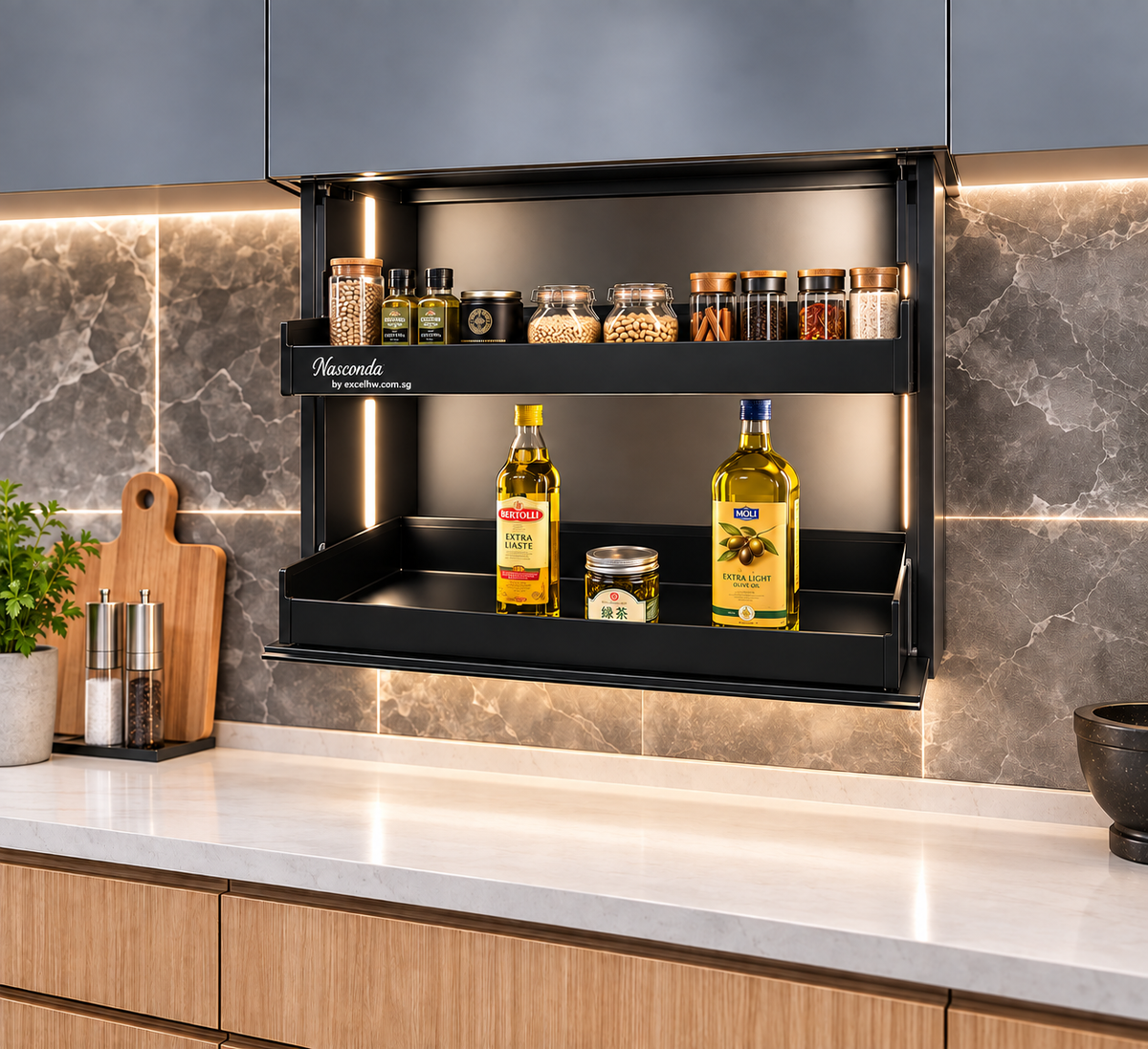

Revolutionize your kitchen storage with the Nasconda™️ - Matte Black Automatic Lift Rack System. This automated lift system brings your upper cabinet contents down to a convenient height with a simple touch, combining modern engineering with effortless accessibility.

• Smooth lifting and dropping.
• Maximum storage weight: 20KG.
• Duration of rising and dropping: Around 8 seconds.
• Lifting range: 550mm.
• Features a touch switch for machine lift.

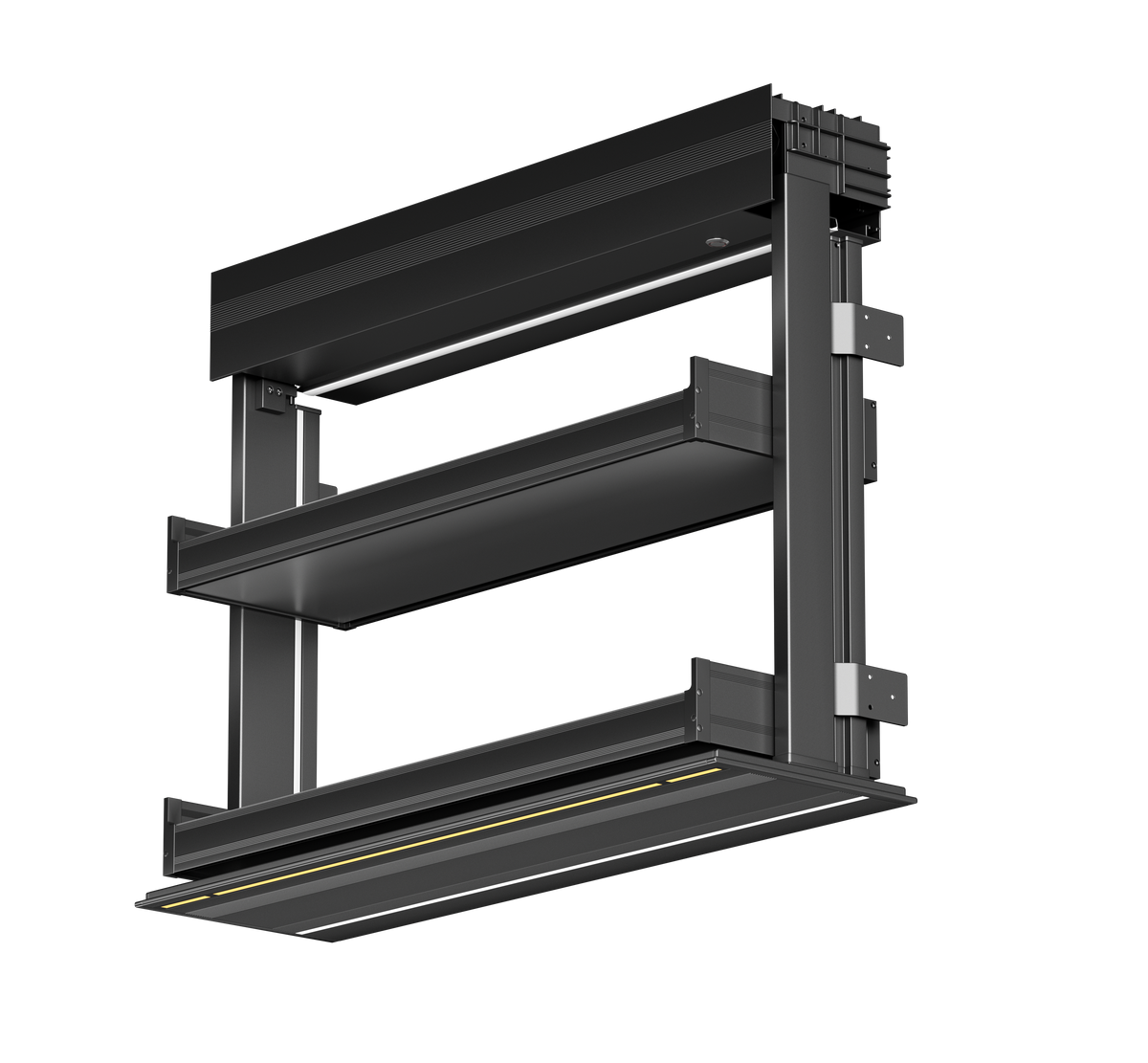

• Includes Left and right side light strips and a Bottom Light Strip.

Technical Details:

• Model Series: PLUS256-800
• Power Supply: Input 110-240V 50HZ, Output DC 12V.


Required Cabinet Dimensions

• Cabinet Height: 700mm
• Cabinet Width (External): 800mm.
• Internal Bottom Width: 764mm.


The system requires an electrical power threading hole (20mm diameter) in the upper right corner of the back panel, positioned 30mm from the top and 30mm from the side.

Installation Instruction

• Download Installation Instruction
