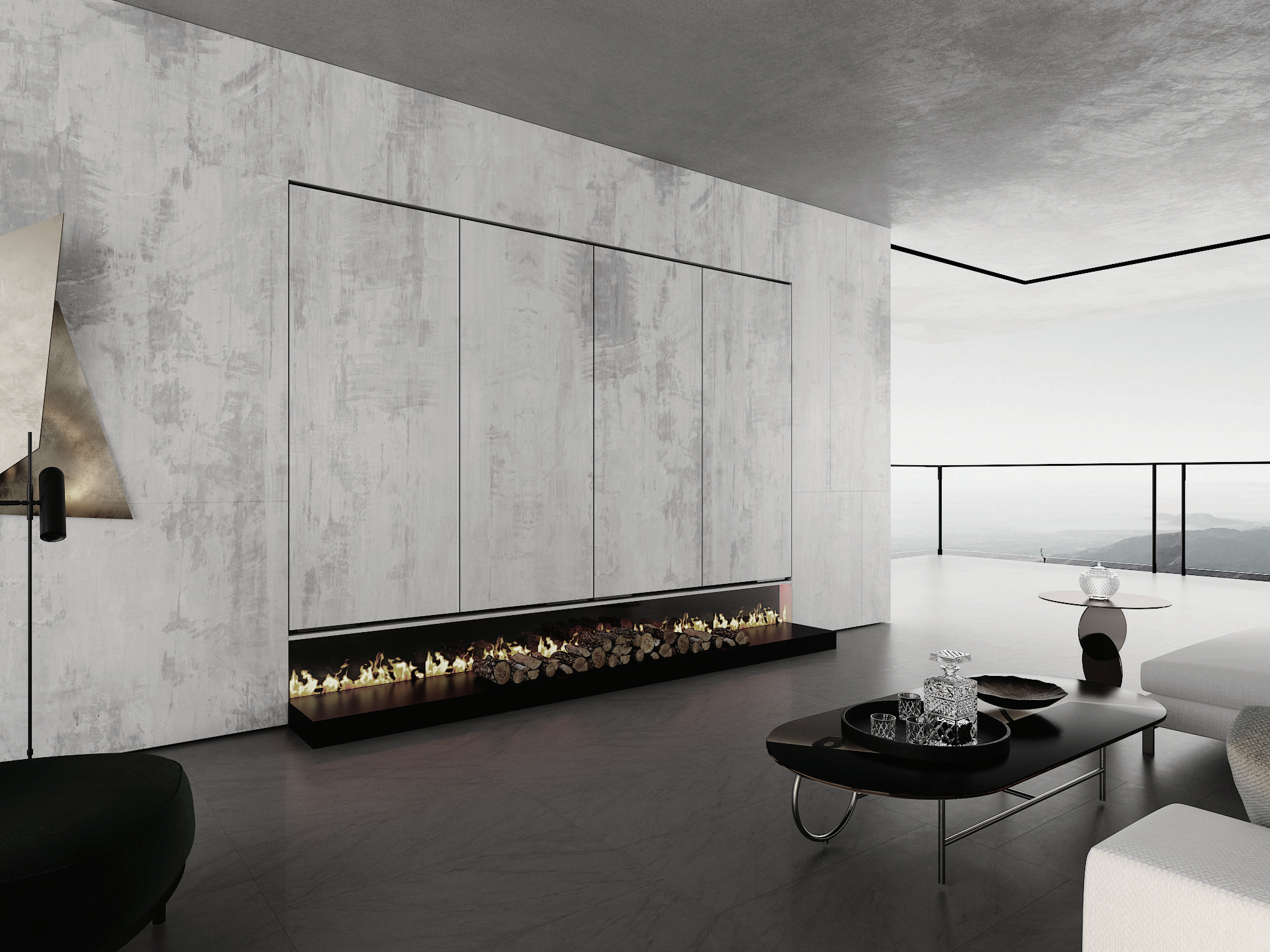

• Fantastic design: Overall surface isin the same levelwhen door is closed_,ereating elegance_,nobilty and harmony.

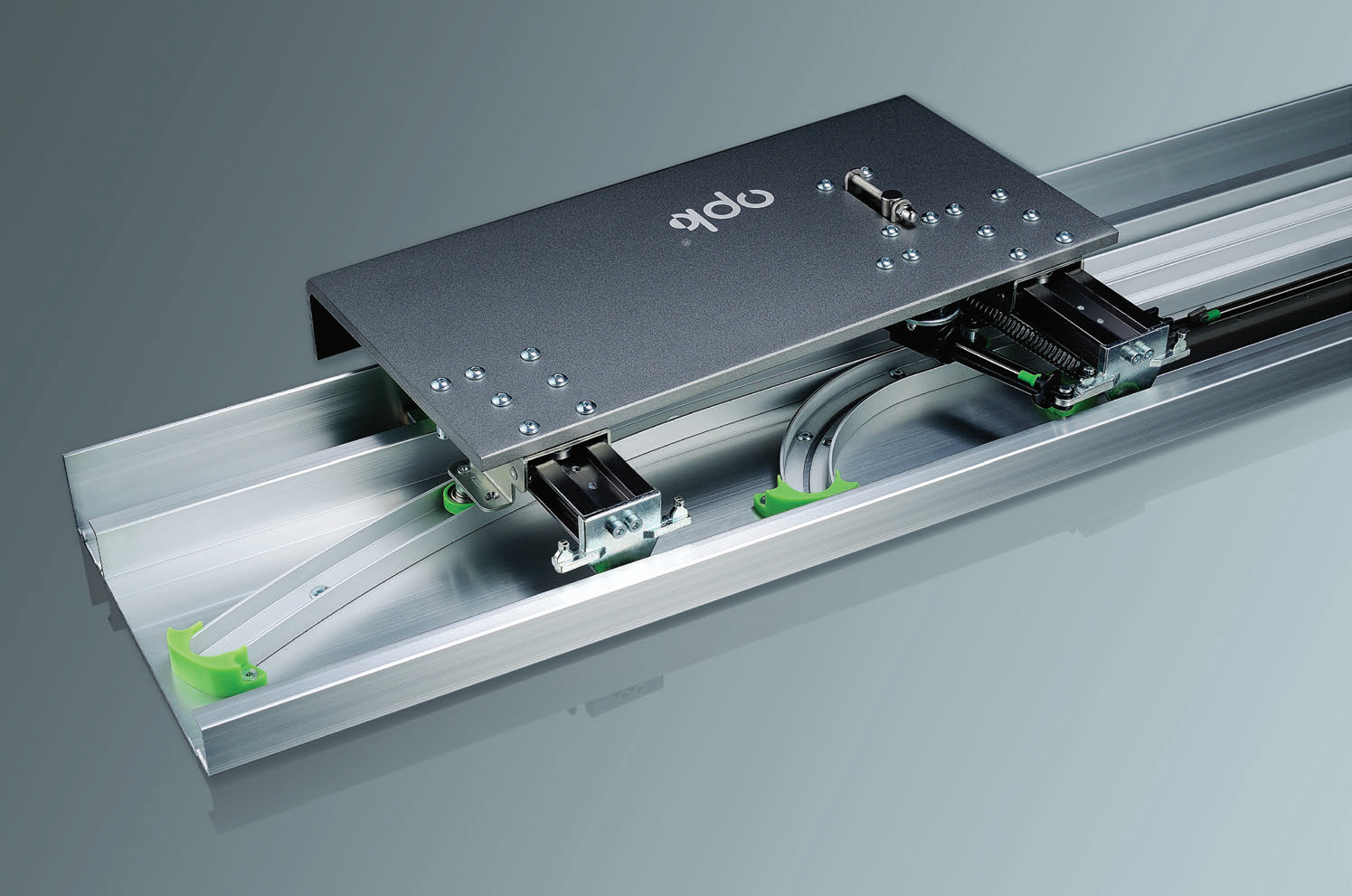

• Load-bearing: High-strength alloys applied to fitings:Mell tracks and multi-roller combination;max weight 40kg/door.
• Two-way Damper Device:Two_-way Damper device for door opening and closing, The damping force can be adjusted according to the weight of the door during door closing.
• Sliding roller: High-qualty bal bearing and imported nyon material adopted; After processing, roller slides more smoothly and quietly, which greatly extends its using lfe.
• Brush:Automatically clearing debris and dust in the rails, ensuring smooth sliding ofroller, protecting them from damage; and prolonging the service life.
• Finishing: Special surface treatment ensures abrasive resistance feature; Beautifu_l and dignified appearance; Suitable for different environment and climate.
• Intelligent system;Just touch or nudgethe intelligent-electric- system-Ioaded device_, then door opens or closes_, whichbrings intelligence_, fashion and humanity.

Electronic technical parameters：

• Voltage Rating:200v~240v 50Hz~60Hz
• Power Rating:30w
• Standby Power:5w
• Door Opening Speed:0.17m/s
• Control Mode:Microcomputer processing Controller
• Bounce Function:Rebound in theconditions of damping or bumping
• Manual Power Needed when Power Off:3kg
• Power Consumption:On average,about 1kWh of electricity consumption in 8 days


Installation Manual

Cabinet reference drawings

Wiring of the split door motor
