• Adjustable pressure control via mounting plate with 3D adjustment function

• Smooth and controlled soft-closing performance for movable doors

• Manufactured from stainless steel SUS304 for superior strength and durability

• SUS304 stainless steel finish for enhanced rust and corrosion resistance

• Lifetime Warranty on Manufacturing Defects with Rust Coverage

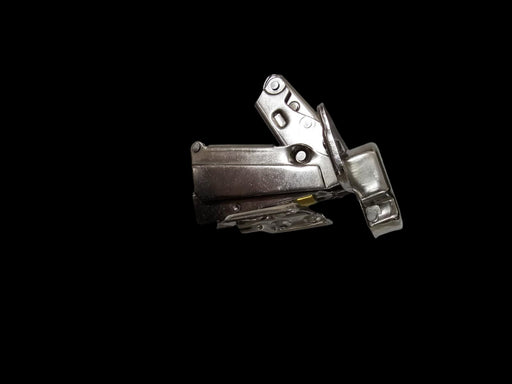

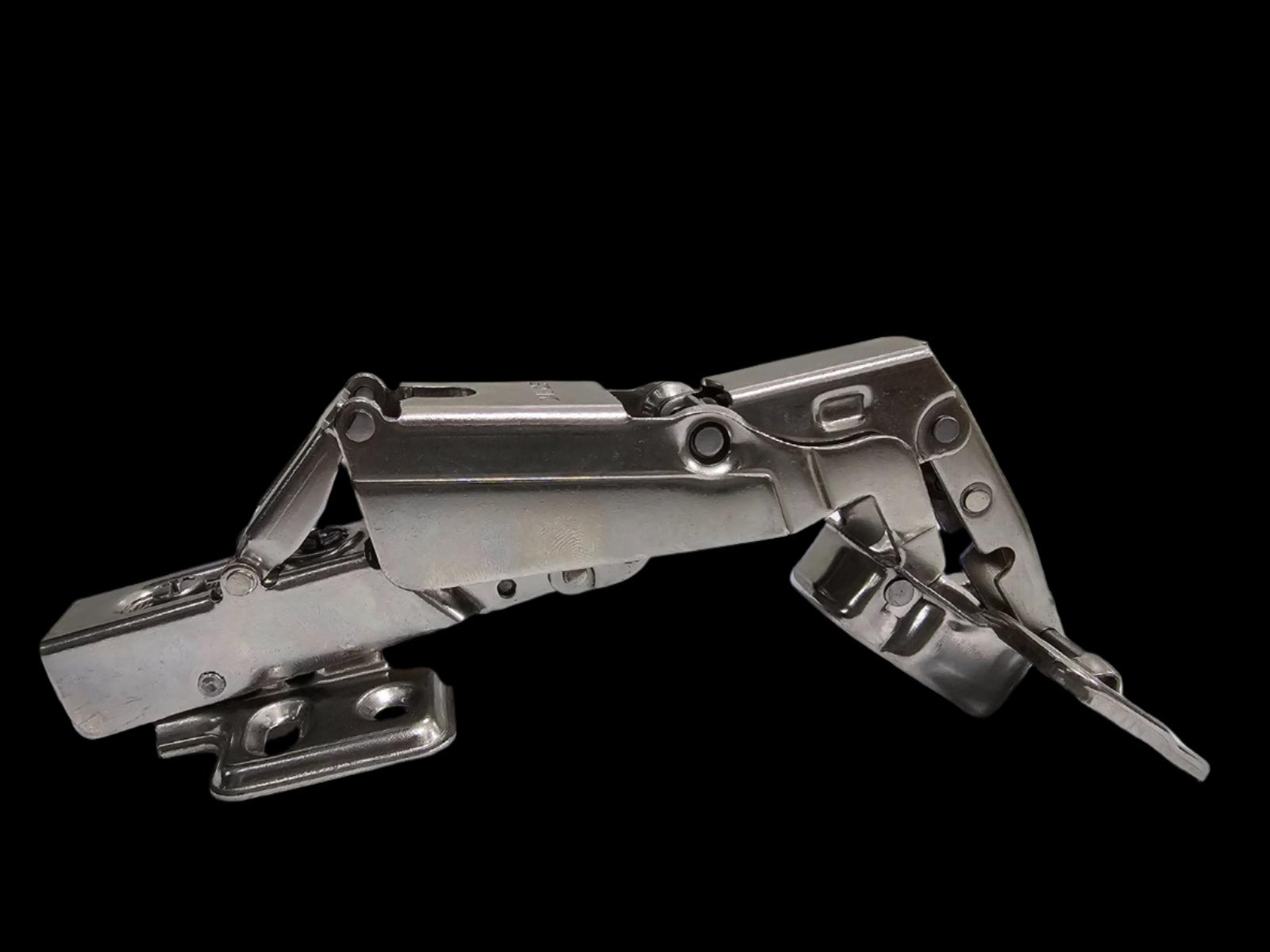

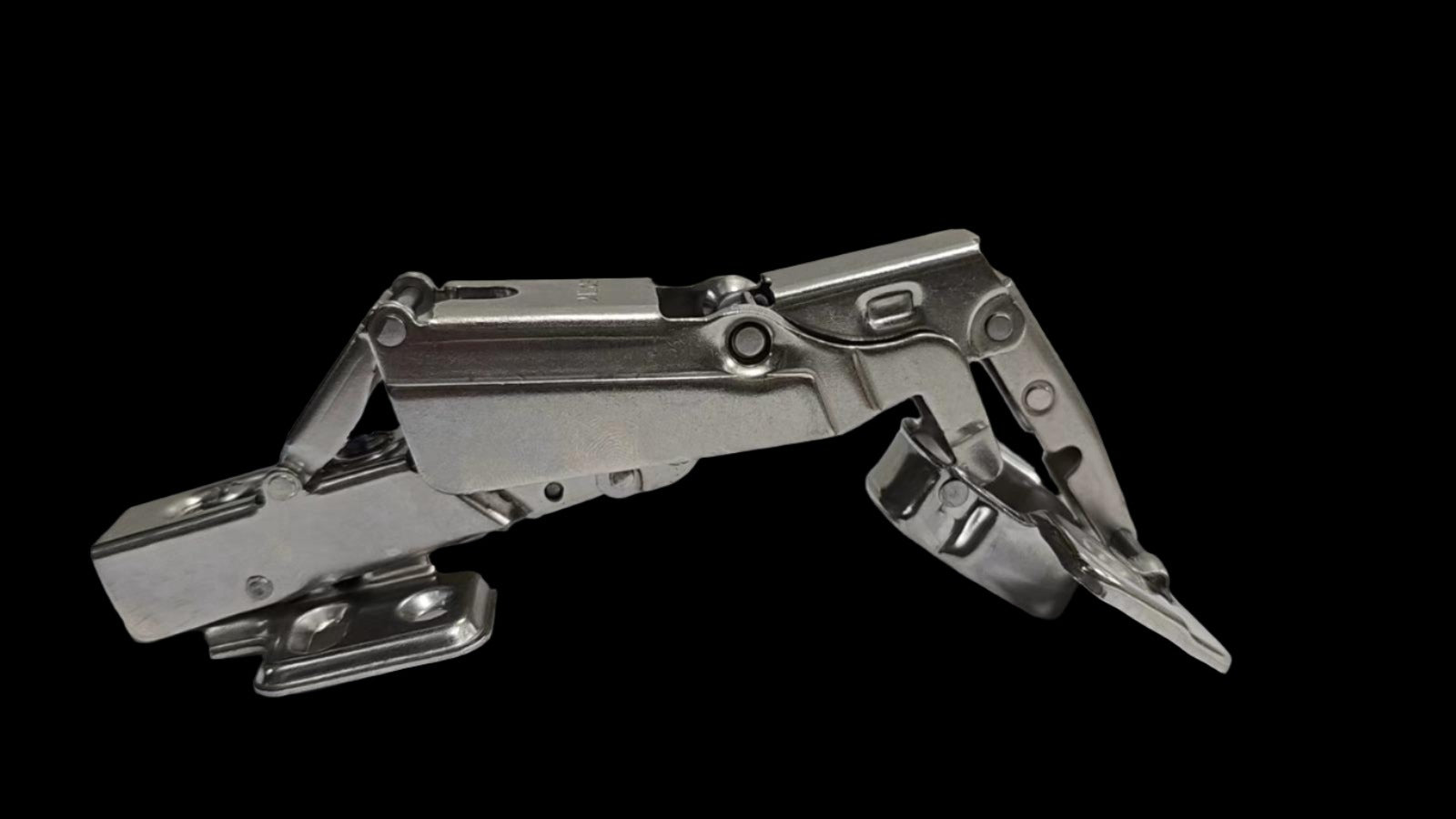

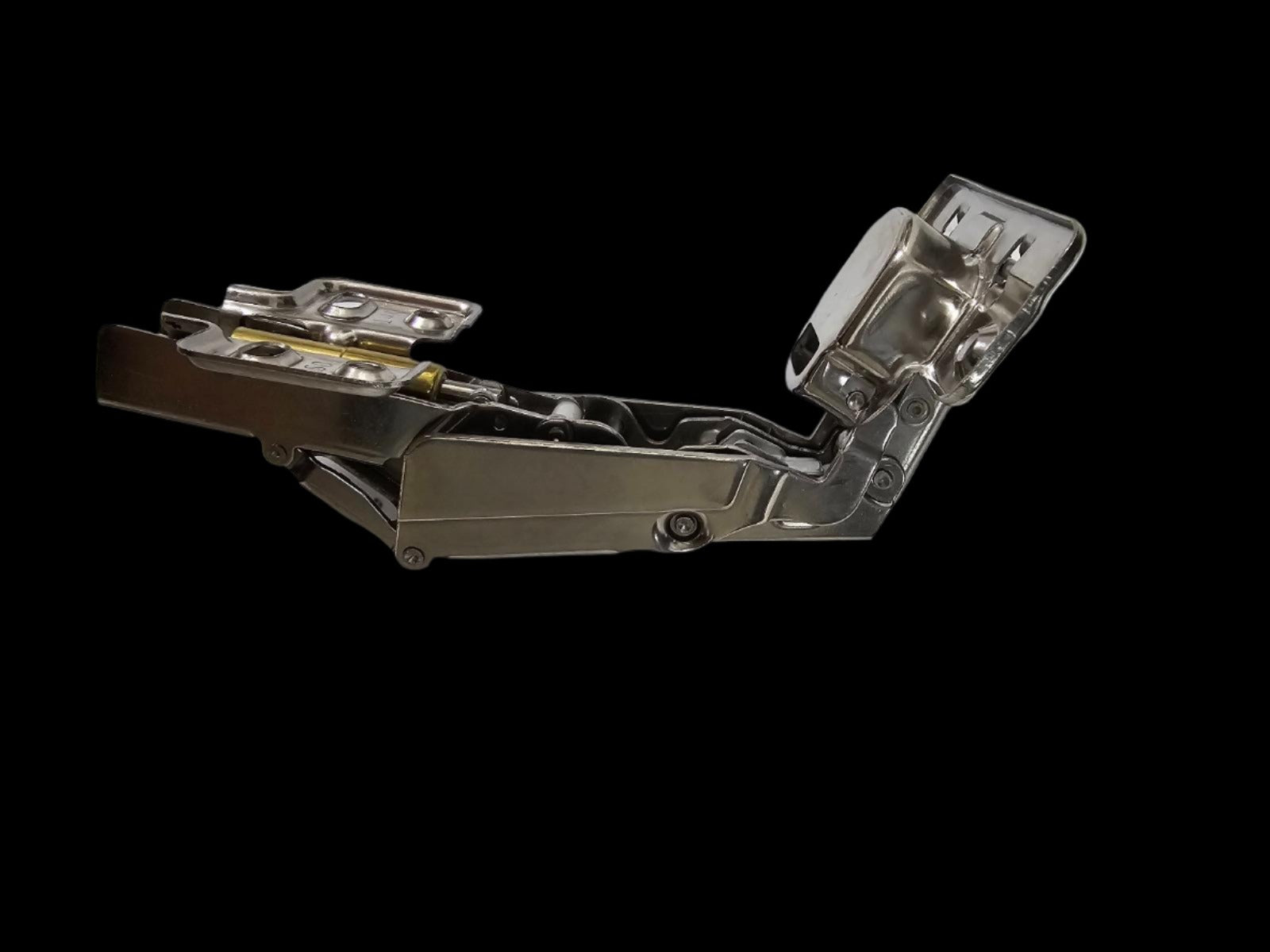

Excel Soft-Closing Hinge features a wide 155° opening angle for enhanced accessibility and smooth operation. Crafted from SUS304 stainless steel, it delivers reliable performance in both residential and commercial applications, ensuring long-lasting durability, corrosion resistance, and consistent soft-closing action.

Specifications

• Opening Angle: 155°

• Diameter of Hinge Cup: 35mm

• Height of Hinge Cup: 12mm

• Hinge Cup Screw Distance: 52mm

• Dimension of Door: 3-7mm

• Range of Door Thickness: 15-28mm

• Stainless Steel SUS304 Grade

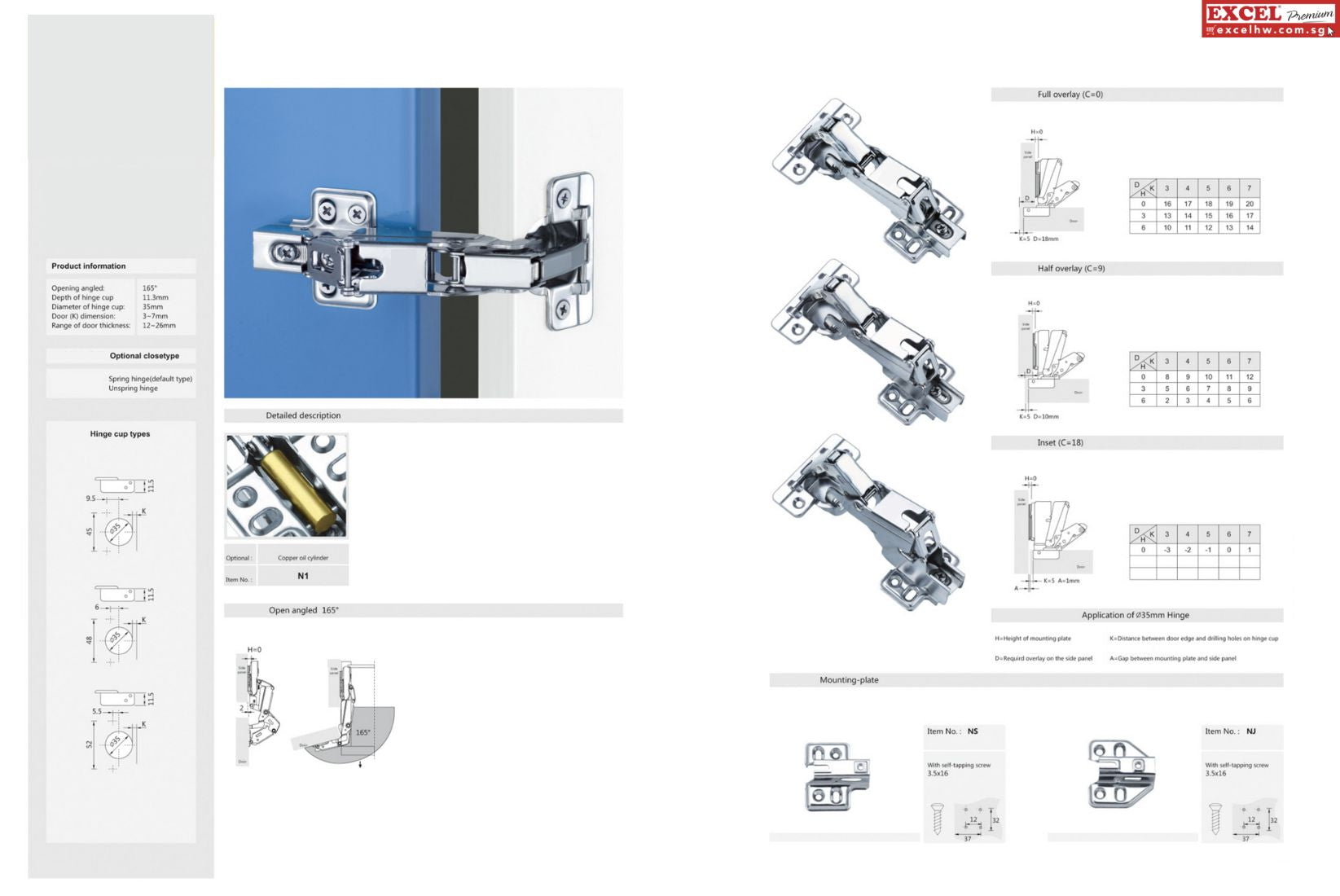

Installation Specification
