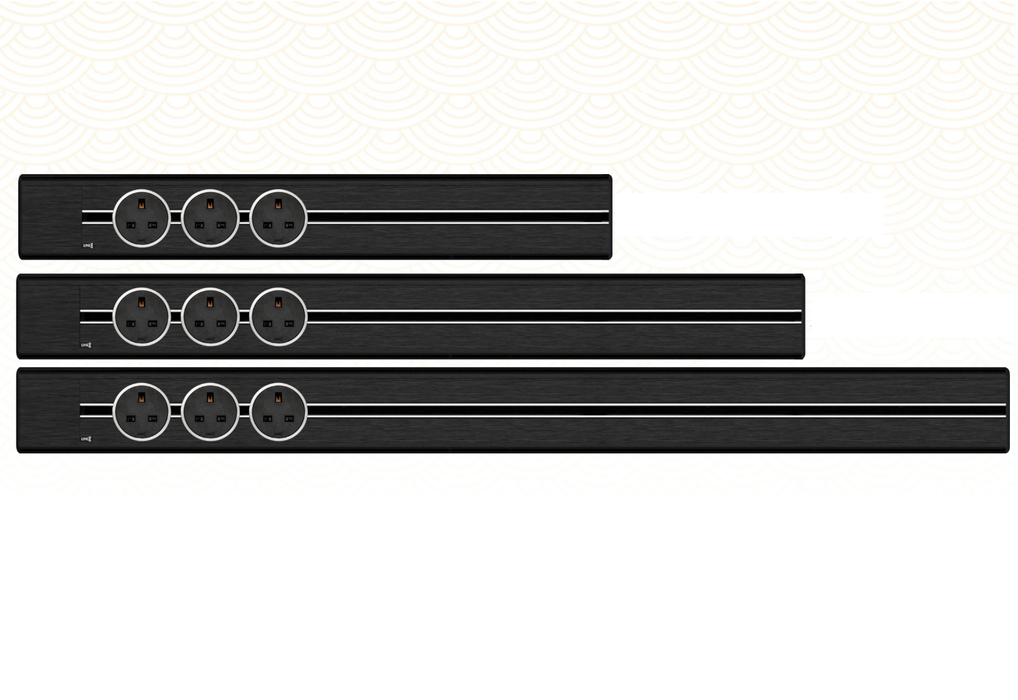

Line8 Power Track
Minimum Length: 600mm
Price based on 1,000mm
State in the order on Left / Right opening for the wire opening

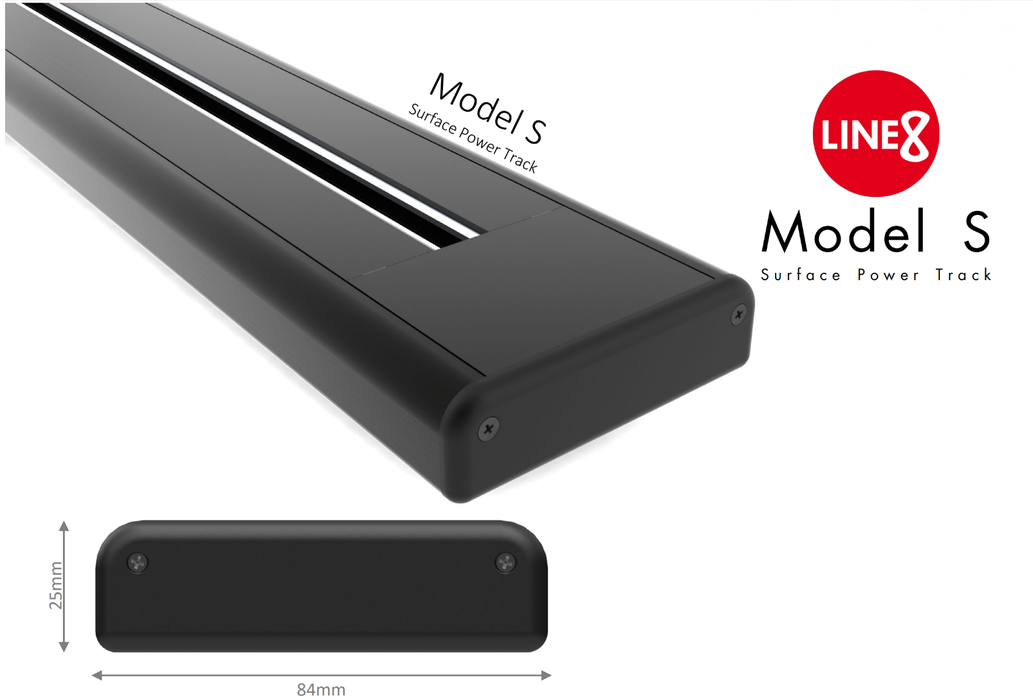

1. Model Surface
Mount onto walls. Upgrade over conventional wall sockets.
Our Model S is suitable for almost every use case.
Bring power anywhere, at any location.
Dimension (Total) : 86mm X 25mm
-End Cap thickness : 5mm
-Face edge radius : 9mm
-Back edge radius : 4mm

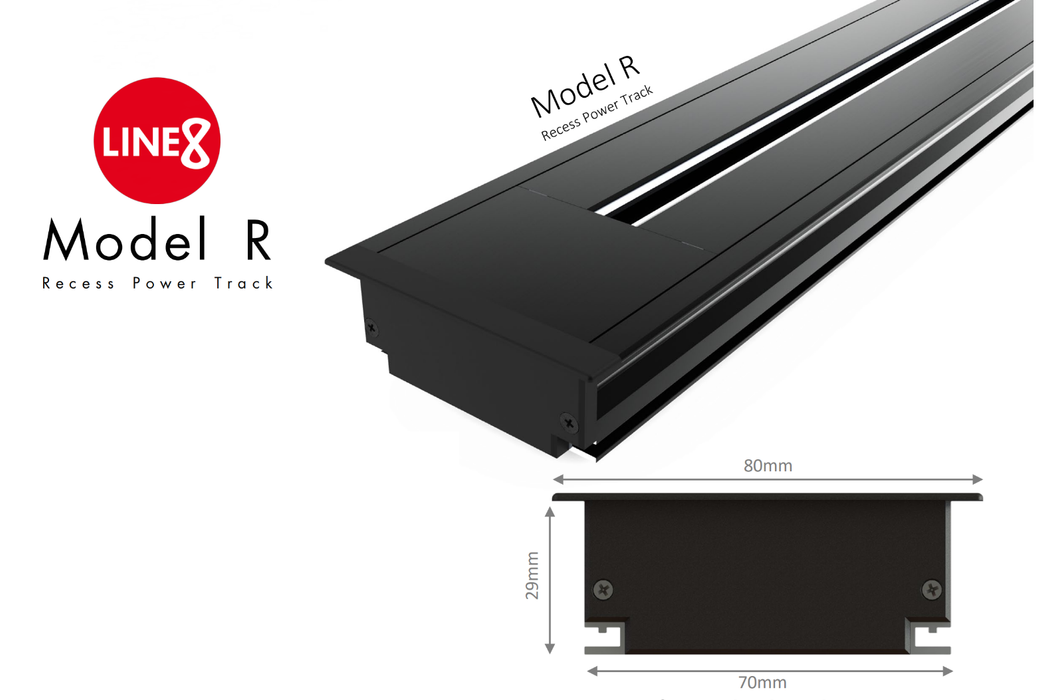

2. Model Recess
Slot into carpentry for a flat and flush finish.
Integrate into your kitchen of your office system furnishings
like it is meant to be. Enhance your power needs.
Dimension (Total) : 80mm X 29mm
-Depth : 29mm
-Hole WIdth : 70mm
-Wing Extensions : 5mm (All 4 sides)
Rated Current : 32A~ 32A⎓ (Dual AC + DC)
Rated Voltage : 250V~ 250V⎓ (Dual AC + DC)
Operating : -5°C to 40°C
Frequency : 50/60Hz
Relative Humidity : 0% to 95%
Certification : BS5733, BS1363, SS145,
SS241, IEC61534, ISO9001
Fire Resistance : UL94 HB
Ingress Protection : IP3X
Made In : Singapore
Warranty Period : 5 Year
